Primary Mover

10 Ton Hydraulic Scissor Hoist Kit - Fits 12-16' Dump Body PF-520

In stock - 49 items available
SKU: PF-520-K
$ 1,790.00
Model

We offer the following methods of delivery:

  • Same day Freight Shipping when ordered Mon-Fri before 12pm central time. (excluding holidays)
  • Pickup from our Mandeville, Louisiana warehouse
  • In some cases, free shipping - please contact us: sales@primarymover.com or call 985-888-6554

PF-520 Scissor Hoist Dump Trailer Kit

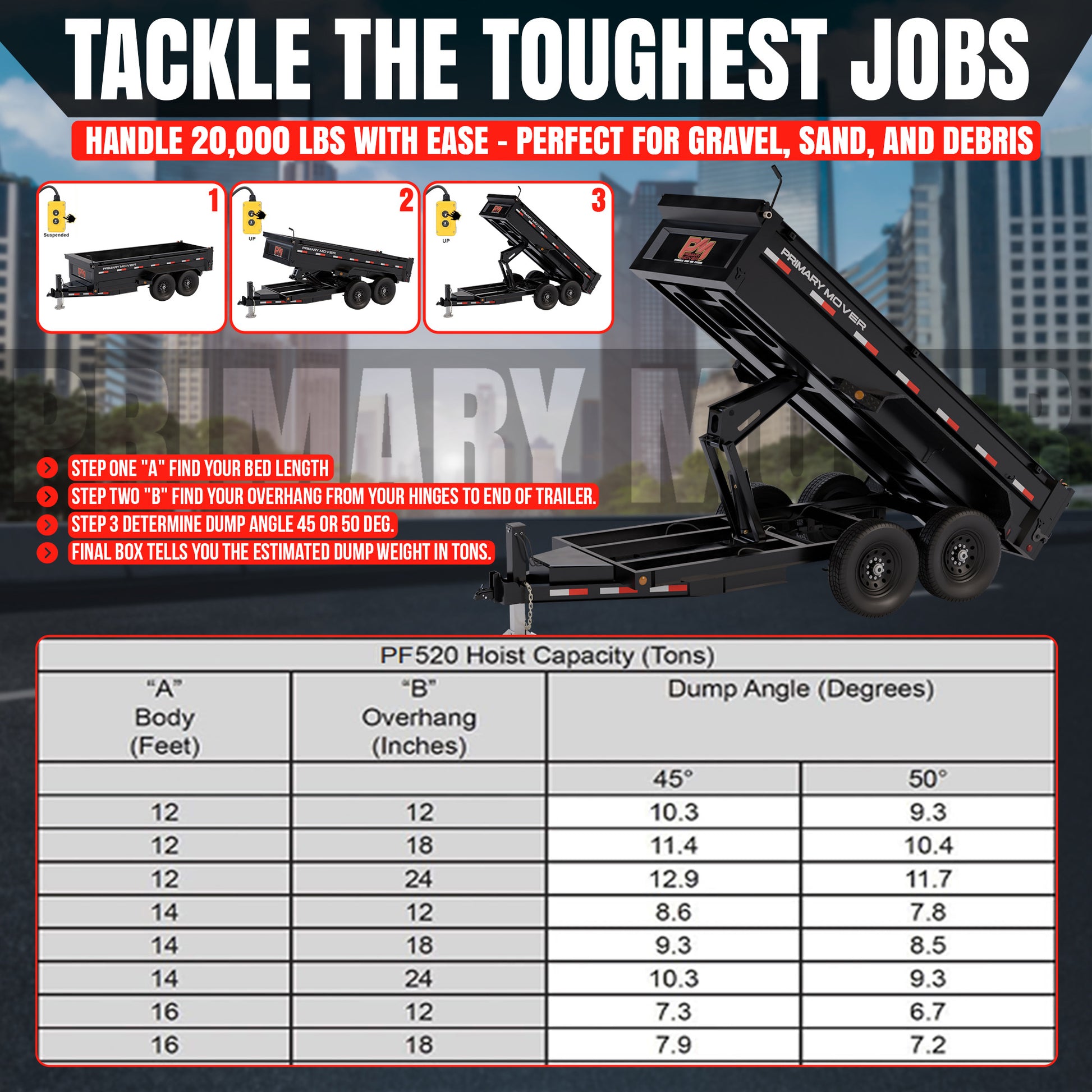

The PF-520 scissor hoist rounds out the top of the 500 series with its exceptional durability and longer stroke, making it ideal for a variety of dump trailer configurations. Designed to handle 10 tons (20,000 lbs), this hoist features a 5.5" diameter cylinder with a 20" stroke. Its 7.5mm cylinder wall, compared to the industry standard of 6.3mm, ensures superior durability and resistance to swelling under high pressure. The longer stroke allows for compatibility with longer beds or increased lifting capacity when the hoist is mounted further forward on shorter beds. This hoist is perfect for 12 to 16-foot dump trailers or utility truck beds.

Key Features

  • Superior Cylinder Design:
    The 5.5" diameter cylinder with a 7.5mm thick wall provides durability and reliability under high-pressure applications.

  • Exceptional Lifting Capacity:
    Handles loads up to 10 tons (20,000 lbs), perfect for longer or heavy-duty dump trailers.

  • Versatile Stroke Length:
    The 20" stroke supports longer beds or increased lifting capacity when the hoist is mounted further forward on shorter beds.

  • Improved Strength and Durability:
    Constructed with reinforced materials for long-lasting performance in demanding applications.

  • Comprehensive Warranty:
    Backed by a 3-year manufacturer warranty for peace of mind.

Kit Options to Suit Your Needs

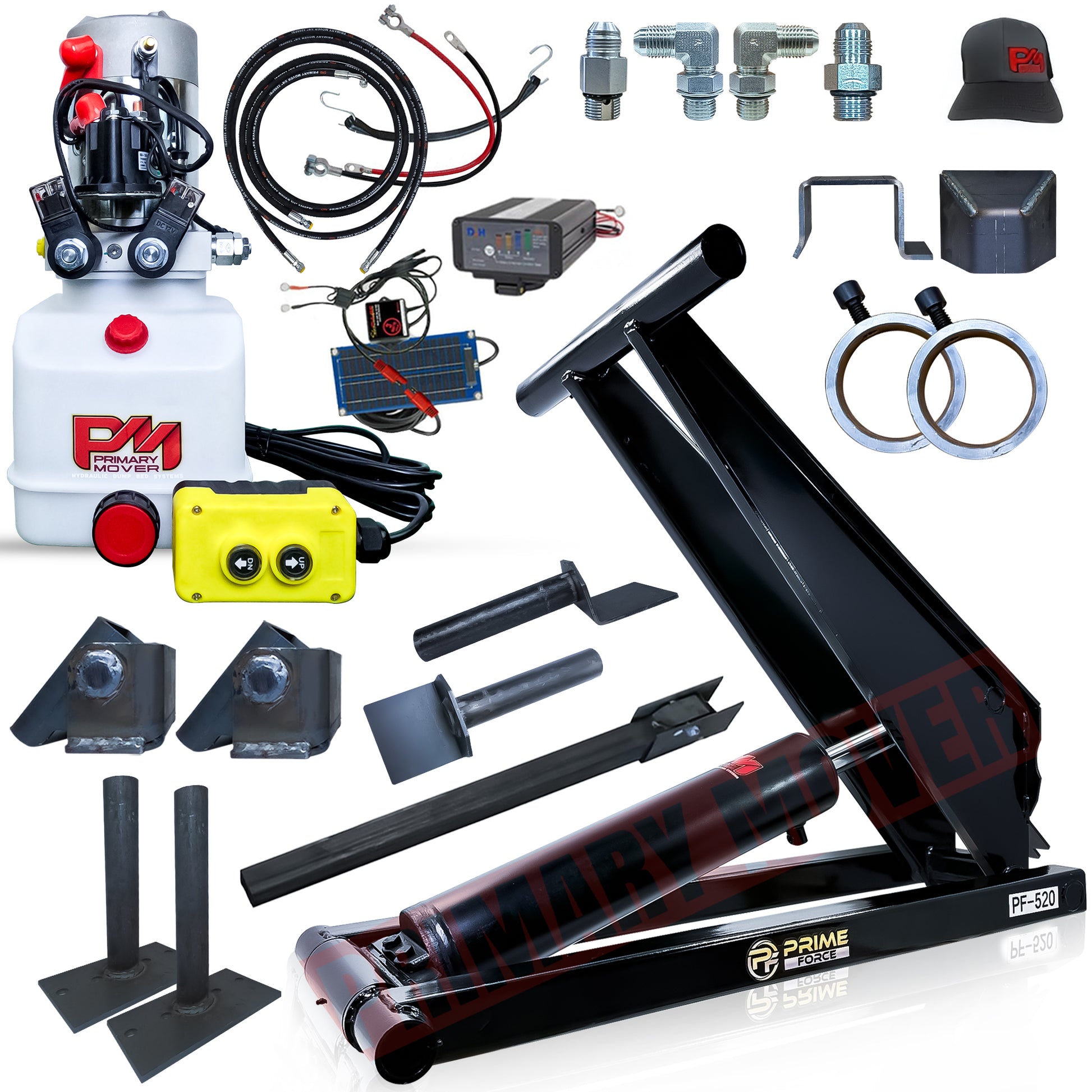

Standard Kit Includes:

  • 5.5" diameter cylinder
  • Mounting Brackets
  • SD Hinges
  • Hydraulic Hose and Connectors
  • Safety Bar Kit
  • Bridon Load Control Valve

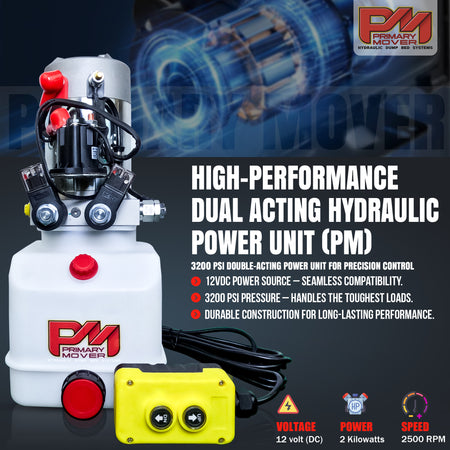

  • Primary Mover Double Acting Hydraulic Pump and Reservoir
  • 15' Pendant Remote with Power-Up/Power-Down
  • Safety Labels & Manual

Premium Kit Adds:

  • SolarPulse 3-Watt Solar Charger to maintain battery life
  • 8 Amp Panel Mount AC Charger for convenient overnight charging

Hoist Only Kit:
Includes the hoist components but excludes the hydraulic pump, remote, and other add-ons.

Power Unit Options

  • Each kit comes standard with the Primary Mover Double Acting Hydraulic Pump and Reservoir, designed to deliver consistent and reliable performance.
  • KTI Double Acting Power Unit (available as an alternative option for an additional cost).
  • 24VDC Power Unit for applications requiring higher voltage (available as an additional cost).

Shipping Information

FREE DELIVERY to commercial business addresses within commercially zoned areas equipped with a freight dock or forklift. Residential, rural, or farm deliveries may incur additional fees. Please review this information carefully to avoid unexpected charges. For more details, see below or contact us directly.

Kits are shipped on a secure pallet for safe transit.

Specifications and Downloads

Download: Prime Force Warranty
Download: Prime Force Manual

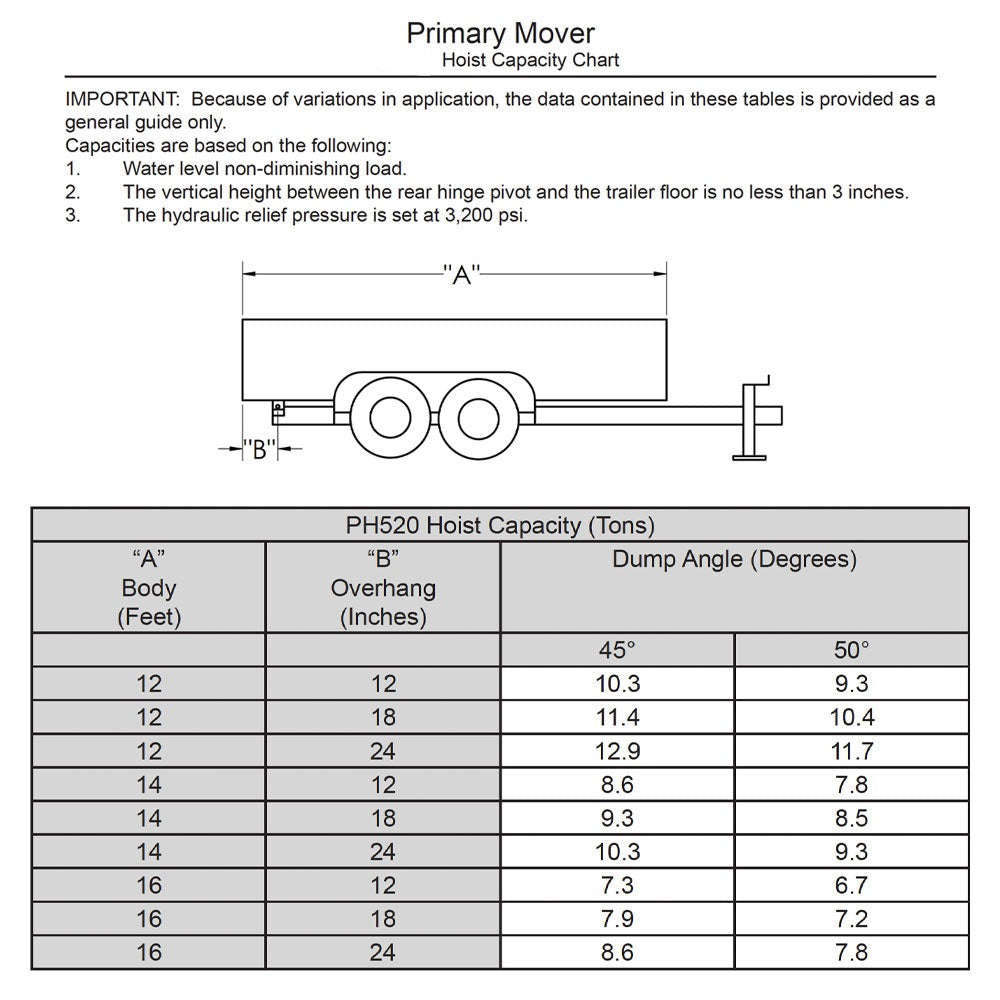

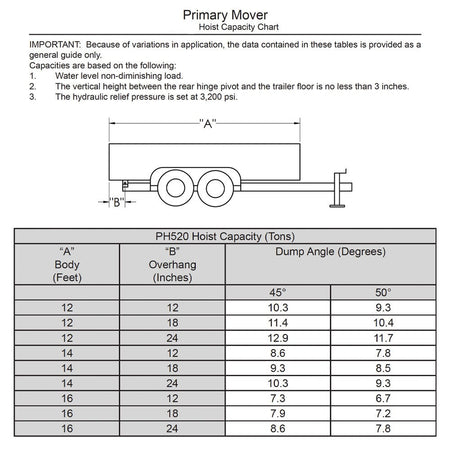

Download: Compare Prime Force Models by Capacity

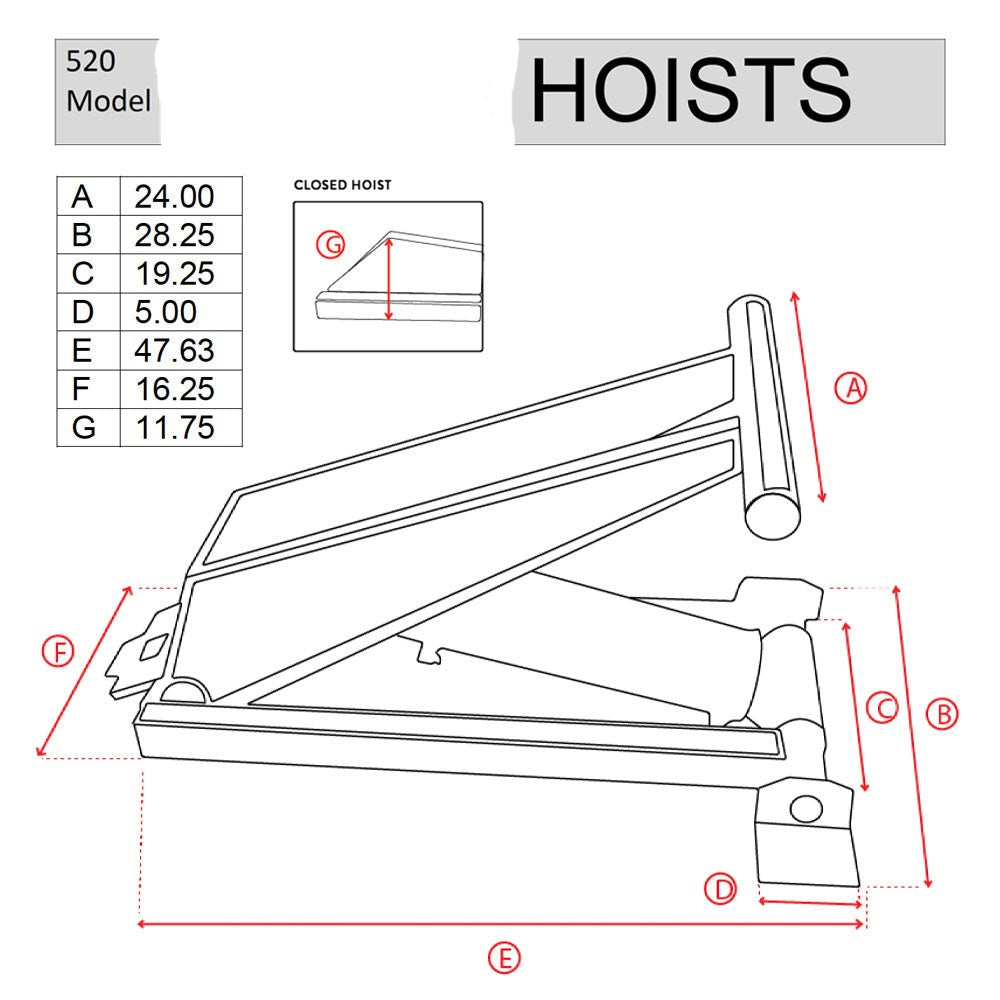

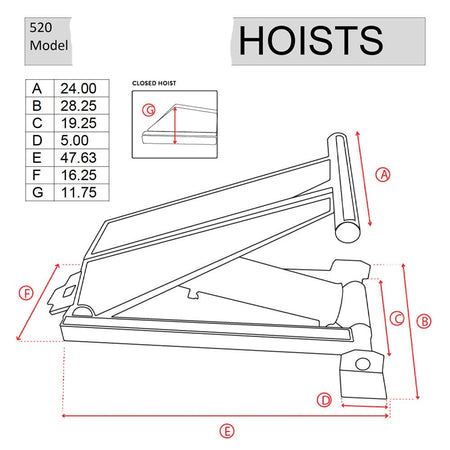

Download: Compare Prime Force Models by Dimensions
