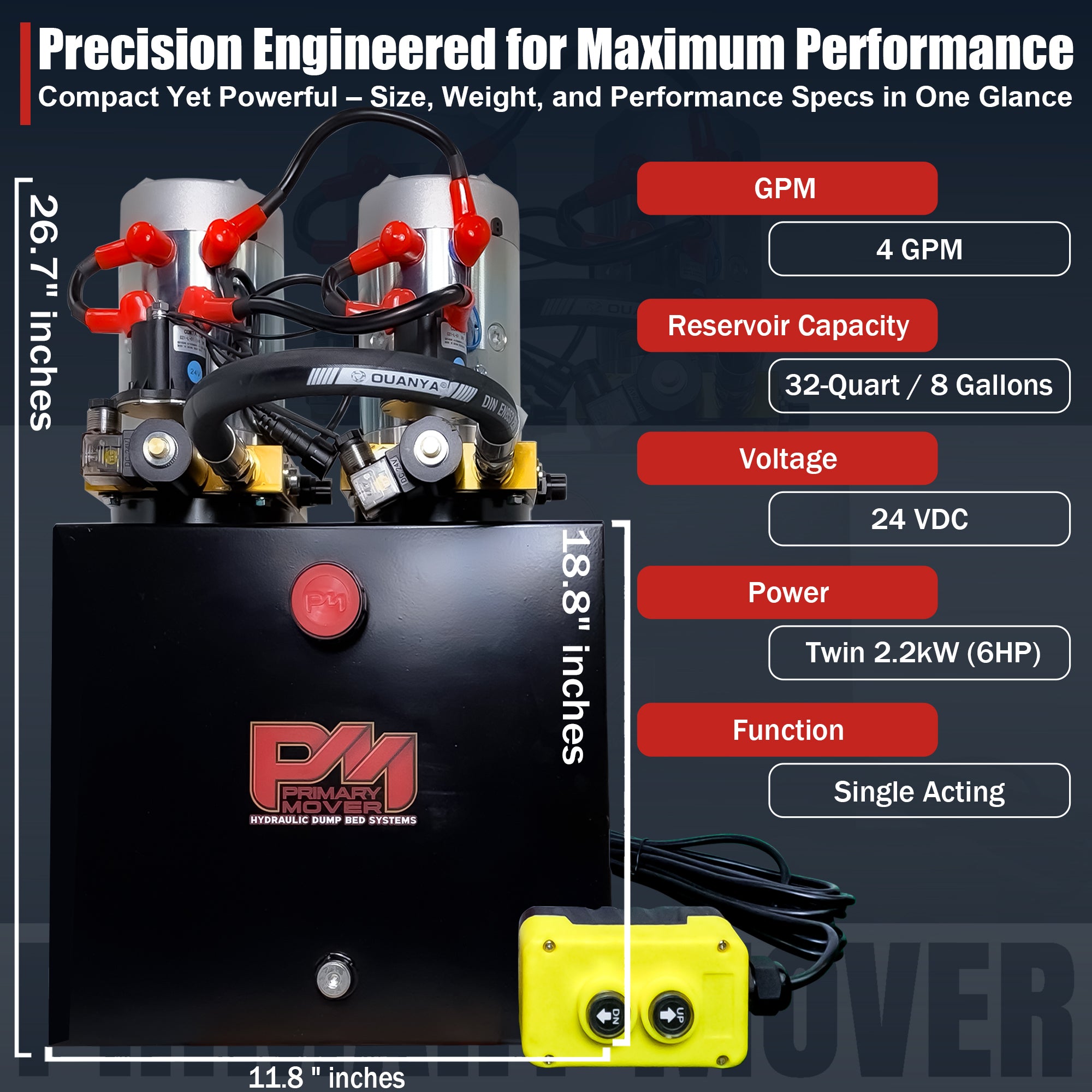

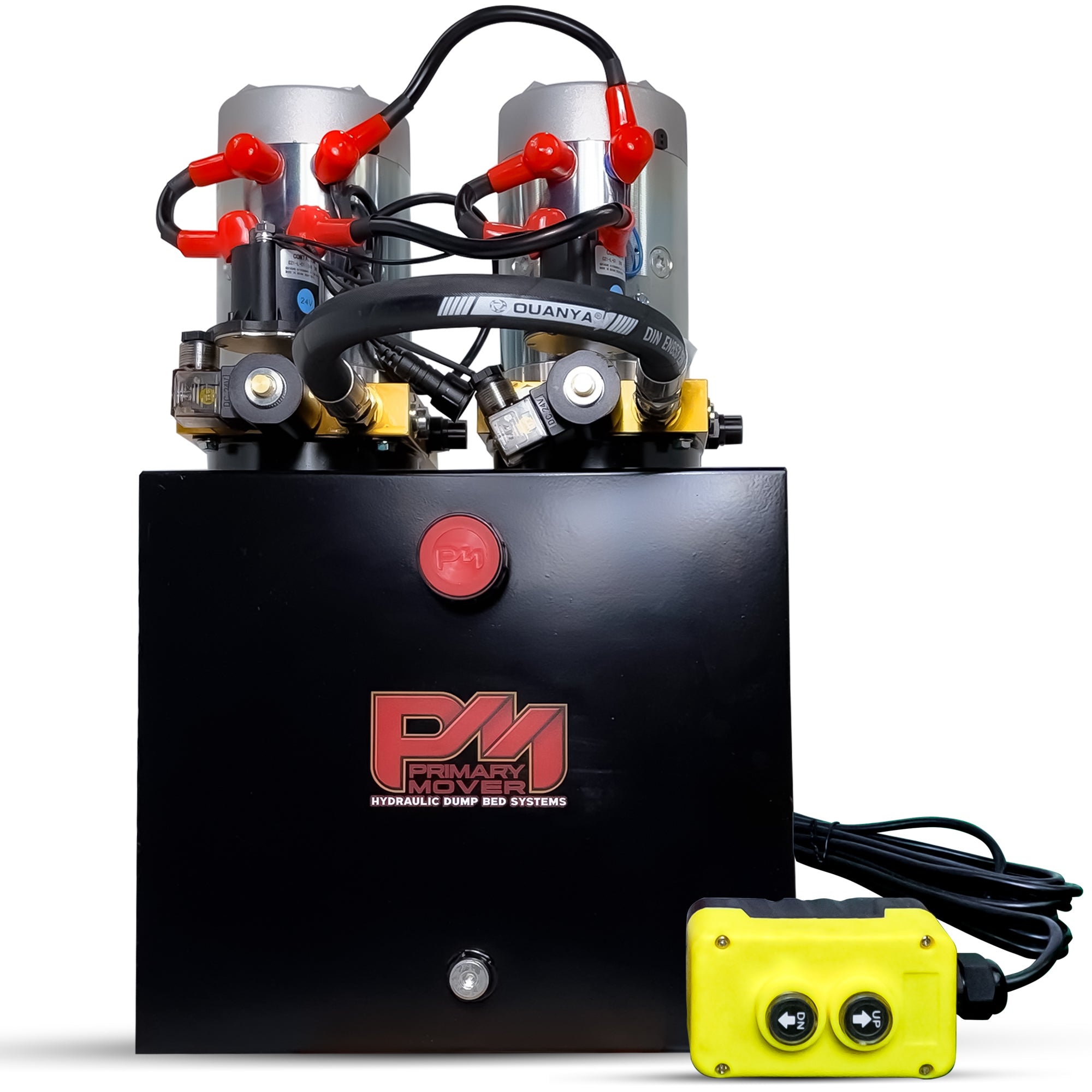

Primary Mover 24V Twin Engine Single-Acting Hydraulic Power Unit with visible red and black buttons, wires, and a yellow switch. Suitable for telescopic dump applications.

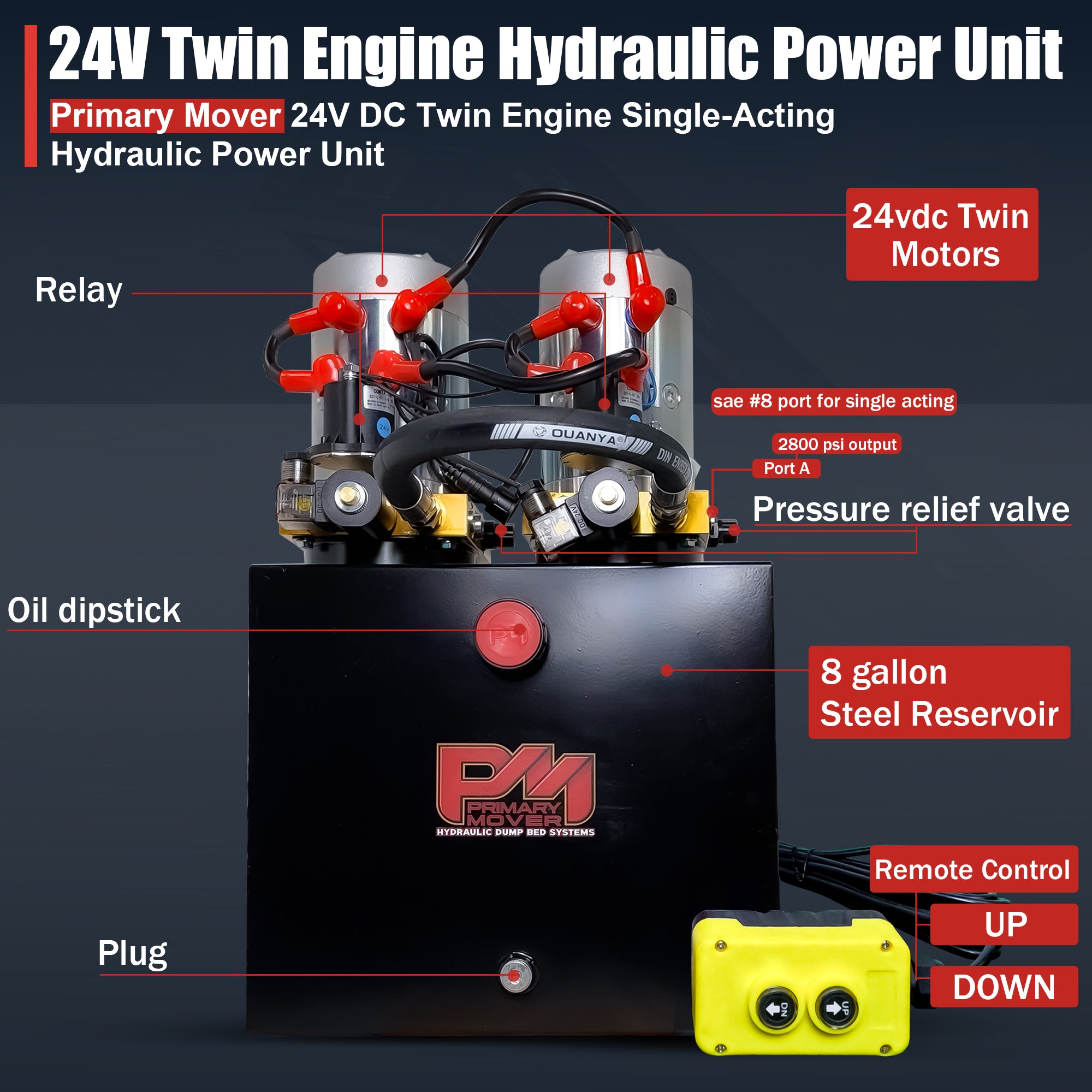

Primary Mover 24V Twin Engine Single-Acting Hydraulic Power Unit with red and black text, featuring controls, twin motors, and tank options for telescopic dump systems.
Primary Mover 24V Twin Engine Single-Acting Hydraulic Power Unit, featuring a red button and a yellow warning sign, designed for telescopic dump applications.
Primary Mover 24V Twin Engine Single-Acting Hydraulic Power Unit with visible large tank, red and black hoses, and close-up of control button.
Primary Mover 24V Twin Engine Single-Acting Hydraulic Power Unit with red and black wires, featuring twin motors and multiple tank sizes for telescopic dump applications.
Primary Mover 24V Twin Engine Single-Acting Hydraulic Power Unit, featuring twin motors, visible wires and hoses, designed for telescopic dump applications.
Primary Mover 24V Twin Engine Single-Acting Hydraulic Power Unit with visible red and black buttons, wires, and a yellow switch. Suitable for telescopic dump applications.
Primary Mover 24V Twin Engine Single-Acting Hydraulic Power Unit with red and black text, featuring controls, twin motors, and tank options for telescopic dump systems.
Primary Mover 24V Twin Engine Single-Acting Hydraulic Power Unit, featuring a red button and a yellow warning sign, designed for telescopic dump applications.
Primary Mover 24V Twin Engine Single-Acting Hydraulic Power Unit with visible large tank, red and black hoses, and close-up of control button.
Primary Mover 24V Twin Engine Single-Acting Hydraulic Power Unit with red and black wires, featuring twin motors and multiple tank sizes for telescopic dump applications.
Primary Mover 24V Twin Engine Single-Acting Hydraulic Power Unit, featuring twin motors, visible wires and hoses, designed for telescopic dump applications.
Primary Mover

"Primary Mover 24VDC Twin Engine High-Performance Hydraulic Power Unit – Maximum Flow & Efficiency"

In stock - 8 items available
SKU: PFP-24TSA6GS
(0)
$ 985.00
Tank Size

We offer the following methods of delivery:

  • Same day Freight Shipping when ordered Mon-Fri before 12pm central time. (excluding holidays)
  • Pickup from our Mandeville, Louisiana warehouse
  • In some cases, free shipping - please contact us: sales@primarymover.com or call 985-888-6554

Description:

For extreme users who demand the lifting power of a telescopic dump system with the speed of a PTO setup! The Primary Mover 24V DC Twin Engine Single-Acting Hydraulic Power Unit is where precision meets performance. Designed specifically for single-acting telescopic dump applications, this powerhouse features twin 2.2 kW (3HP) motors, delivering a total of 6HP and producing 3.2 GPM at 2500 PSI—the standard working pressure for most telescopic dump systems.

This single-acting power unit is available in multiple tank sizes, each optimized for different telescopic cylinder setups:

✔ 6-Gallon Steel Tank – Recommended for 7K-rated telescopic cylinders up to 135” stroke
✔ 8-Gallon Steel Tank – Ideal for 12K-rated telescopic cylinders up to 144” stroke
✔ 10-Gallon Steel Tank – Required for larger 168” stroke telescopic cylinders

Key Features:

✅ Unmatched Speed & Power

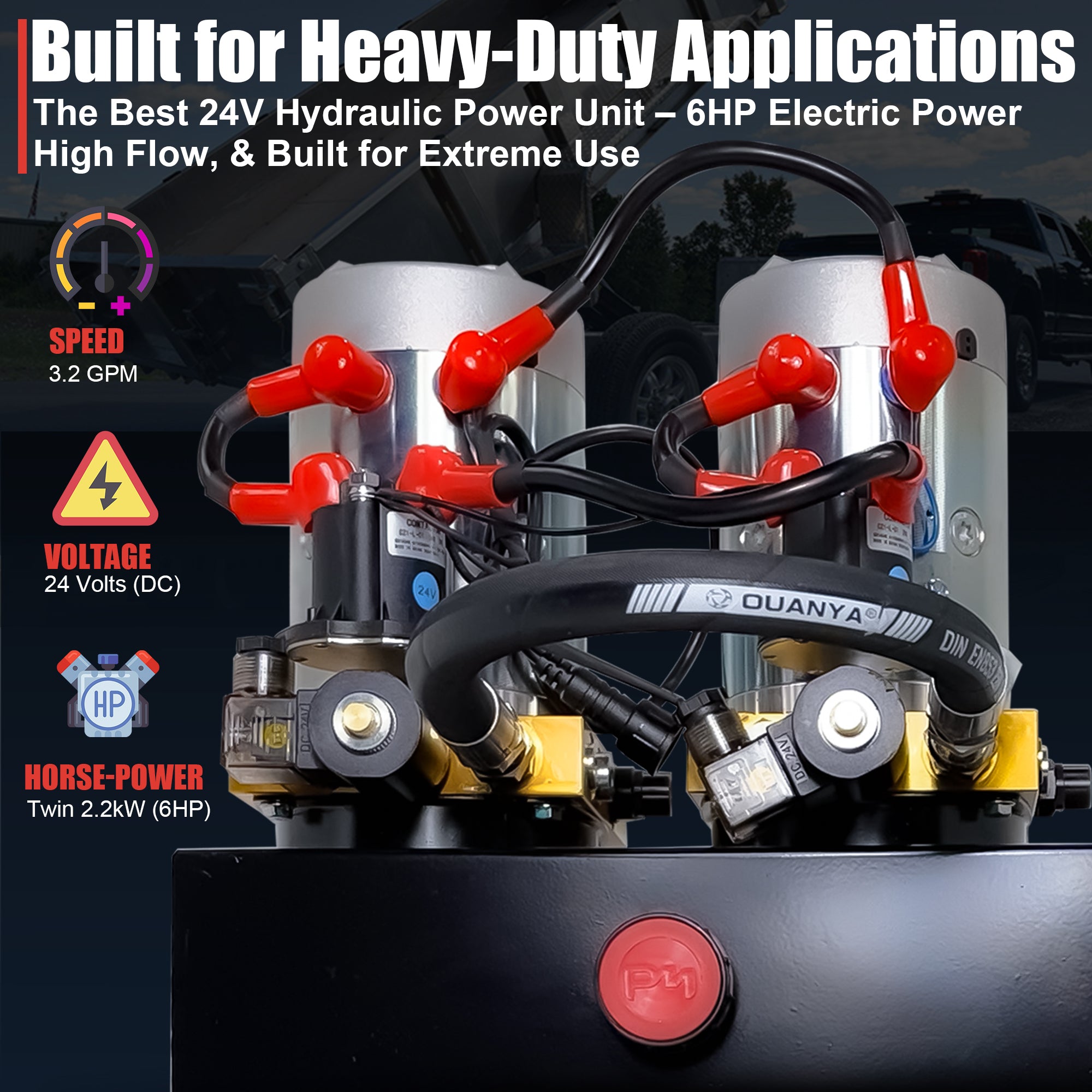

  • Twin 2.2 kW / 3HP motors (Total: 6HP)
  • 3.2 GPM at 2500 PSI – Optimized for telescopic dump applications
  • Single-acting operation – Powers up, gravity down for reliable performance

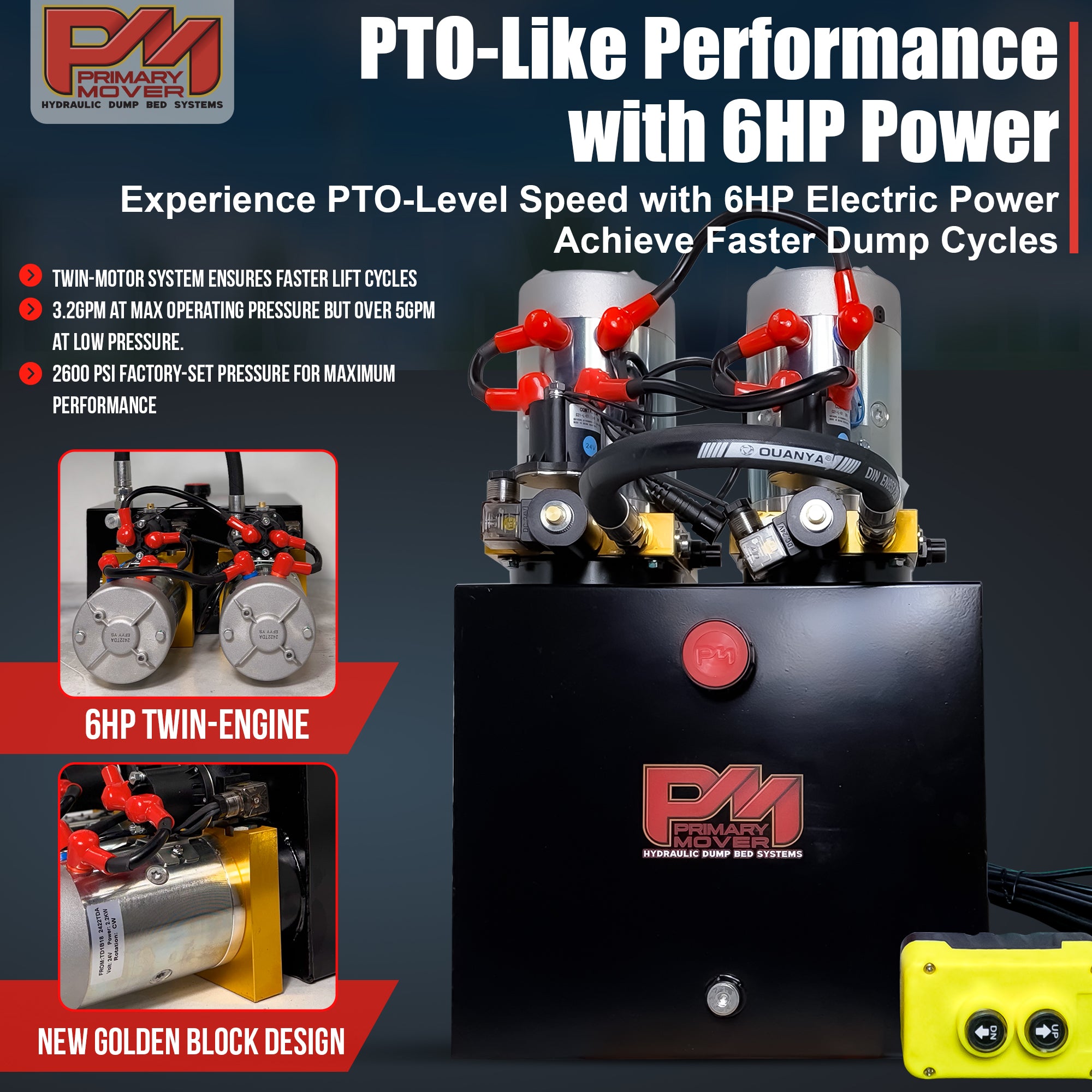

  • PTO-like performance in an electric power unit

✅ Optimized for Heavy-Duty Applications

  • Factory-set at 2600 PSI for maximum efficiency
  • Adjustable relief settings available upon request (custom PSI settings available for an upcharge)
  • Capable of operating up to 3200 PSI

✅ Heavy-Duty & Reliable

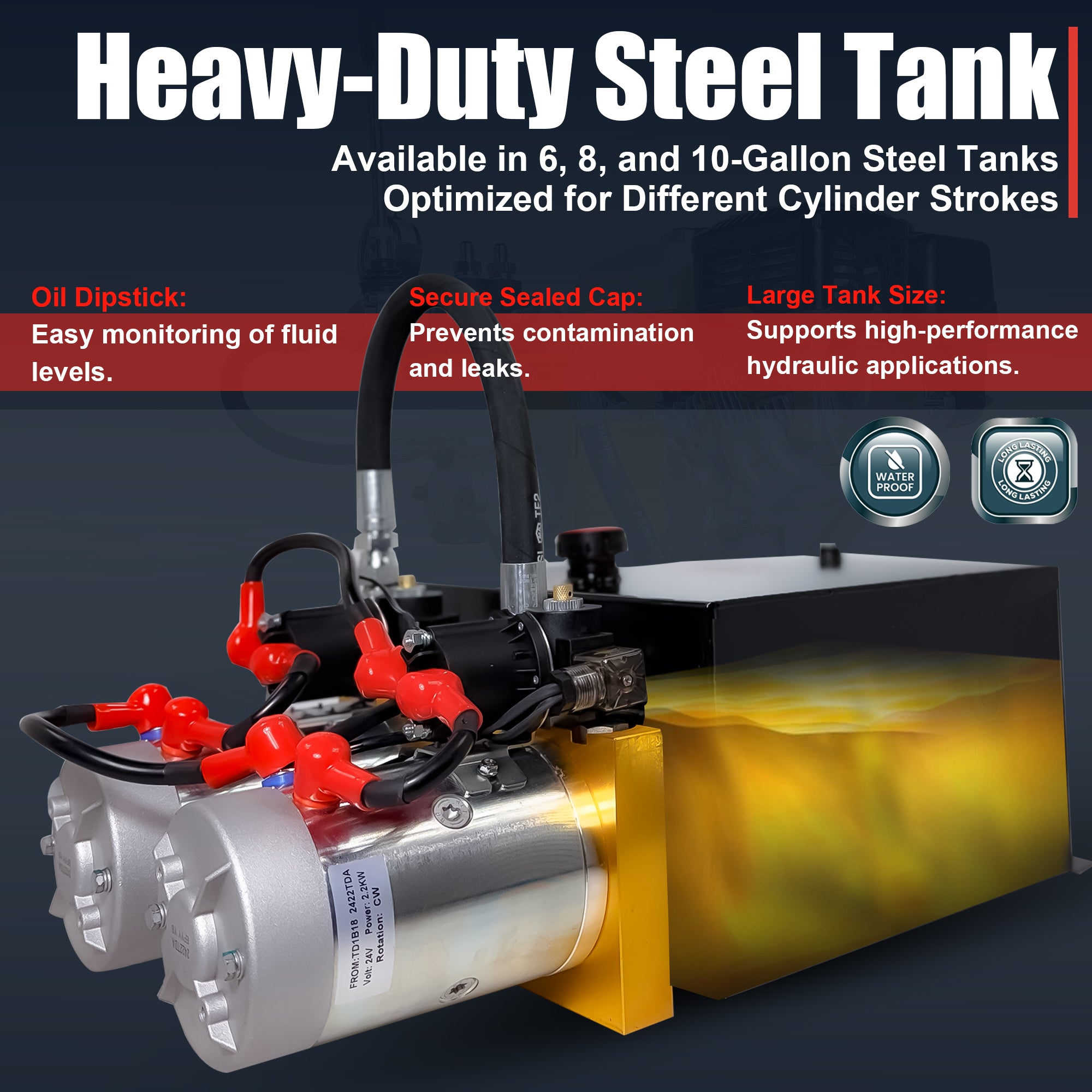

  • Available in 6, 8, and 10-gallon steel tanks for different capacity needs
  • Designed for high-output hydraulic systems requiring single-acting functionality

✅ Versatile Hydraulic Applications

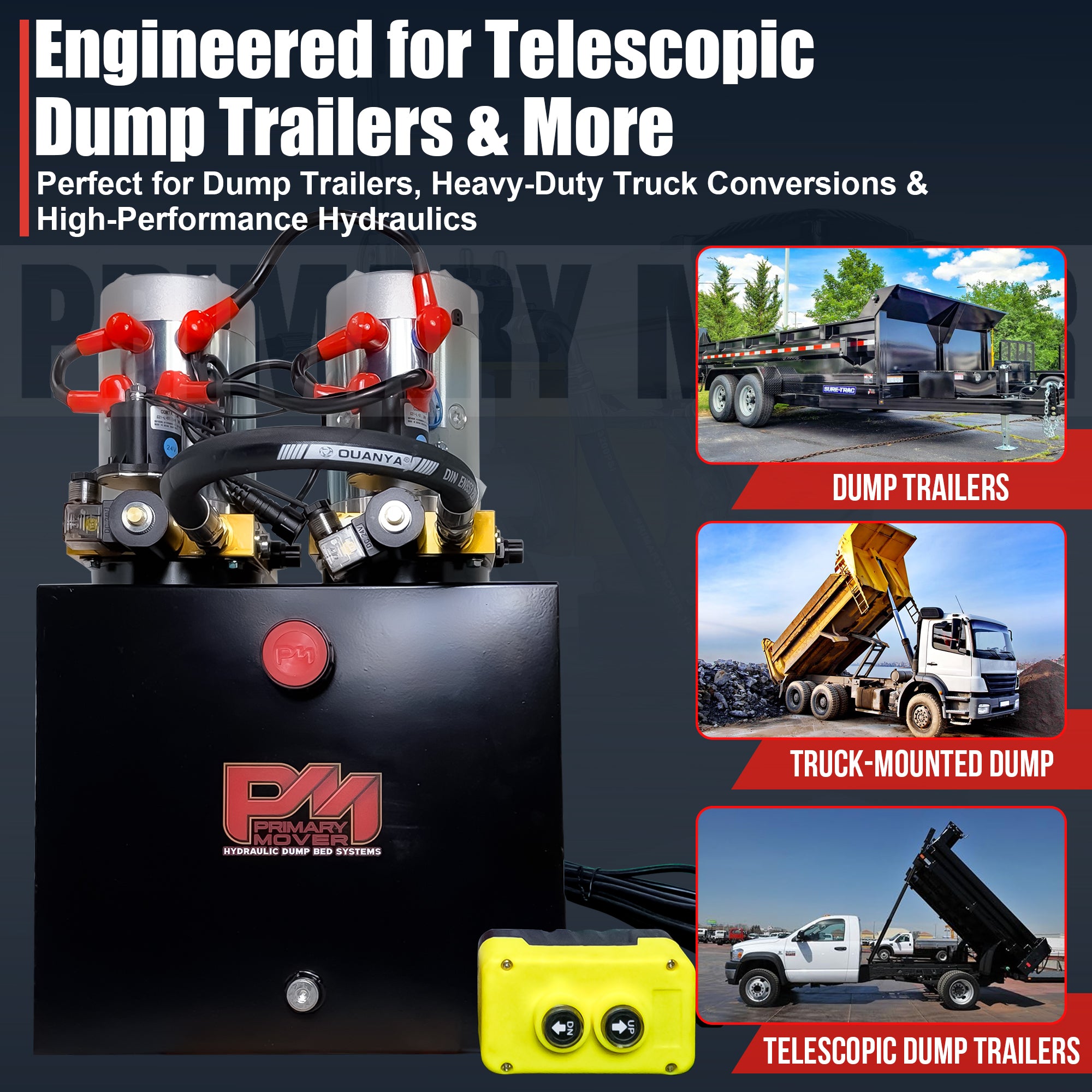

  • Perfect for telescopic dump trailers, heavy-duty truck conversions, and high-performance hydraulic systems
  • Achieves faster dump cycles compared to standard 12V single motor power units

Why Choose Primary Mover?

🔹 Industry-Leading Flow Rate & PSI Control
🔹 6HP Electric Power – Compact & Powerful
🔹 Customizable Relief Settings for Your Needs

🚛 Need serious lifting power with rapid cycle speeds? Choose the right tank size and upgrade to the Primary Mover 24V Twin Engine Single-Acting Power Unit today!
