12 Ton Hydraulic Scissor Hoist Kit - Fits 16-20' Dump Body PF-621-6
Couldn't load pickup availability
We offer the following methods of delivery:
- Same day Freight Shipping when ordered Mon-Fri before 12pm central time. (excluding holidays)
- Pickup from our Mandeville, Louisiana warehouse
- In some cases, free shipping - please contact us: sales@primarymover.com or call 985-888-6554
PF-621-6 Scissor Hoist Dump Trailer Kit
The PF-621-6 scissor hoist builds on the robust design of the PF-616-6, offering a significant upgrade in stroke and lifting capacity. Designed to handle 12 tons (24,000 lbs), it features the same 6.5" diameter cylinder with an industry-leading 10mm thick wall but extends to a 21" stroke, delivering superior performance for heavier loads and larger trailers. This model currently includes removable bottom feet but will transition to non-removable integrated feet in future versions, like the rest of the 600 series. The PF-621-6 includes HD Hinges and is an excellent choice for those seeking additional lifting capacity before stepping up to the HD models. It is ideal for 16 to 20-foot dump trailers.
Key Features
-
Superior Cylinder Design:
The 6.5" diameter cylinder with a 10mm thick wall provides exceptional durability and reliability, outperforming industry standards. -
Extended Stroke for Greater Capacity:
A 21" stroke significantly increases lifting capacity, making it ideal for heavier loads and longer trailers. -
Removable Bottom Feet:
Includes removable bottom feet for flexible installation; future models will feature non-removable integrated feet for added stability. -
Improved Strength and Durability:
Built with reinforced materials and HD Hinges to handle demanding applications and ensure long-lasting performance. -
Comprehensive Warranty:
Backed by a 3-year manufacturer warranty for peace of mind.
Kit Options to Suit Your Needs

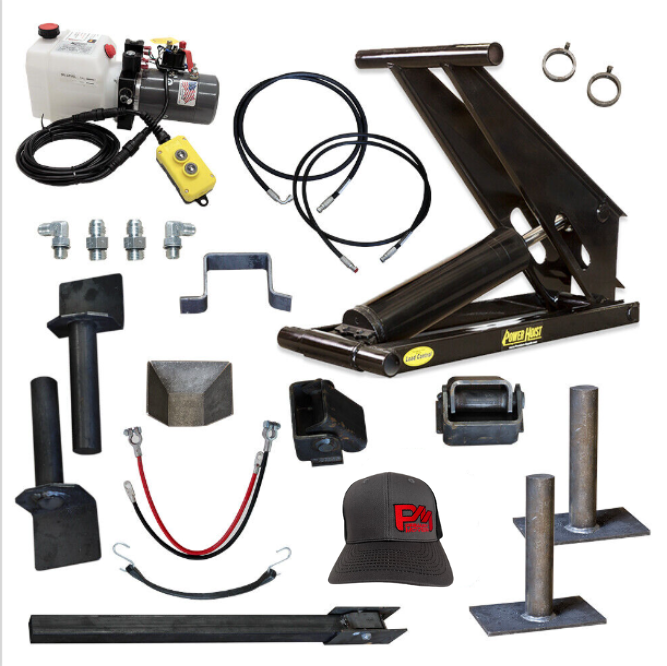

Standard Kit Includes:
- 6.5" diameter cylinder
- Mounting Brackets
- HD Hinges
- Hydraulic Hose and Connectors
- Safety Bar Kit
- Bridon Load Control Valve
- Primary Mover Double Acting Hydraulic Pump and Reservoir
- 15' Pendant Remote with Power-Up/Power-Down
- Safety Labels & Manual
Premium Kit Adds:
- SolarPulse 3-Watt Solar Charger to maintain battery life
- 8 Amp Panel Mount AC Charger for convenient overnight charging
Hoist Only Kit:
Includes the hoist components but excludes the hydraulic pump, remote, and other add-ons.
Power Unit Options
- Each kit comes standard with the Primary Mover Double Acting Hydraulic Pump and Reservoir, designed to deliver consistent and reliable performance.
- KTI Double Acting Power Unit (available as an alternative option for an additional cost).
- 24VDC Power Unit for applications requiring higher voltage (available as an additional cost).
Shipping Information
FREE DELIVERY to commercial business addresses within commercially zoned areas equipped with a freight dock or forklift. Residential, rural, or farm deliveries may incur additional fees. Please review this information carefully to avoid unexpected charges. For more details, see below or contact us directly.
Kits are shipped on a secure pallet for safe transit.
Specifications and Downloads
Download: Prime Force Warranty
Download: Prime Force Manual
Download: Compare Prime Force Models by Capacity

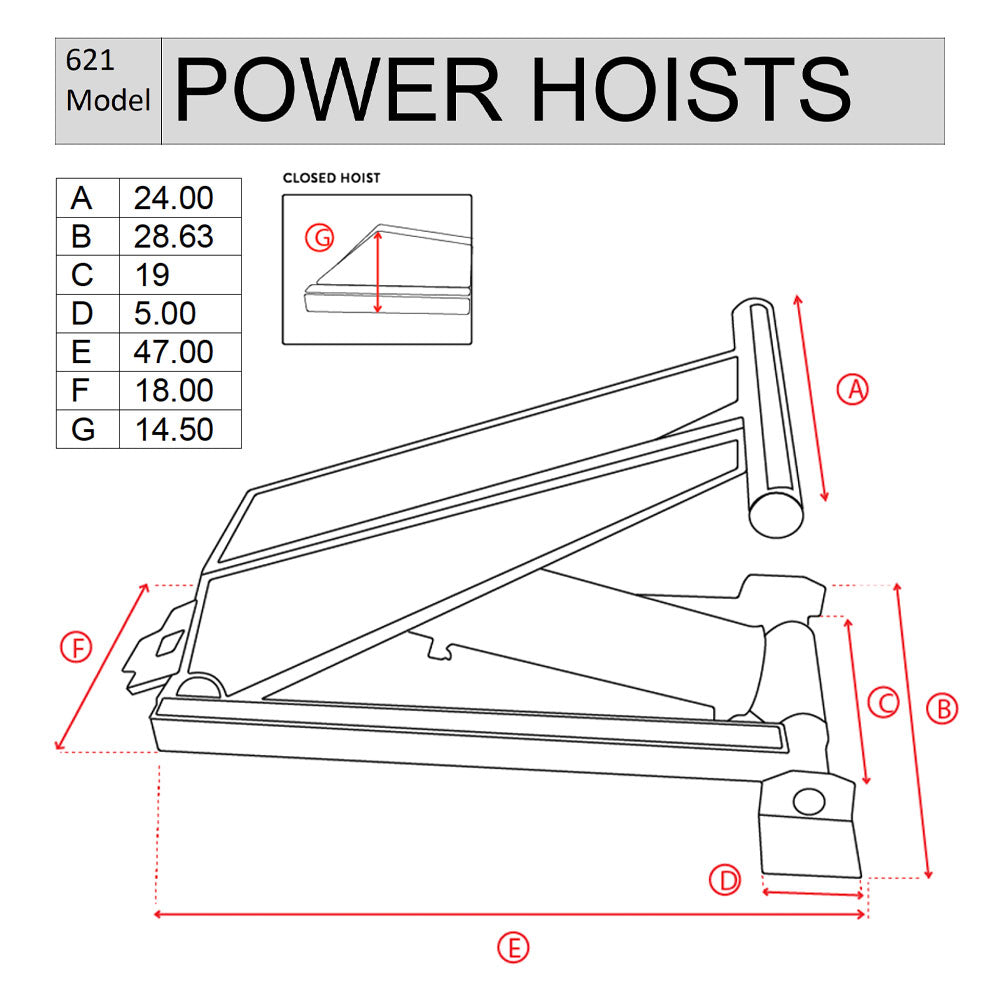

Download: Compare Prime Force Models by Dimensions
