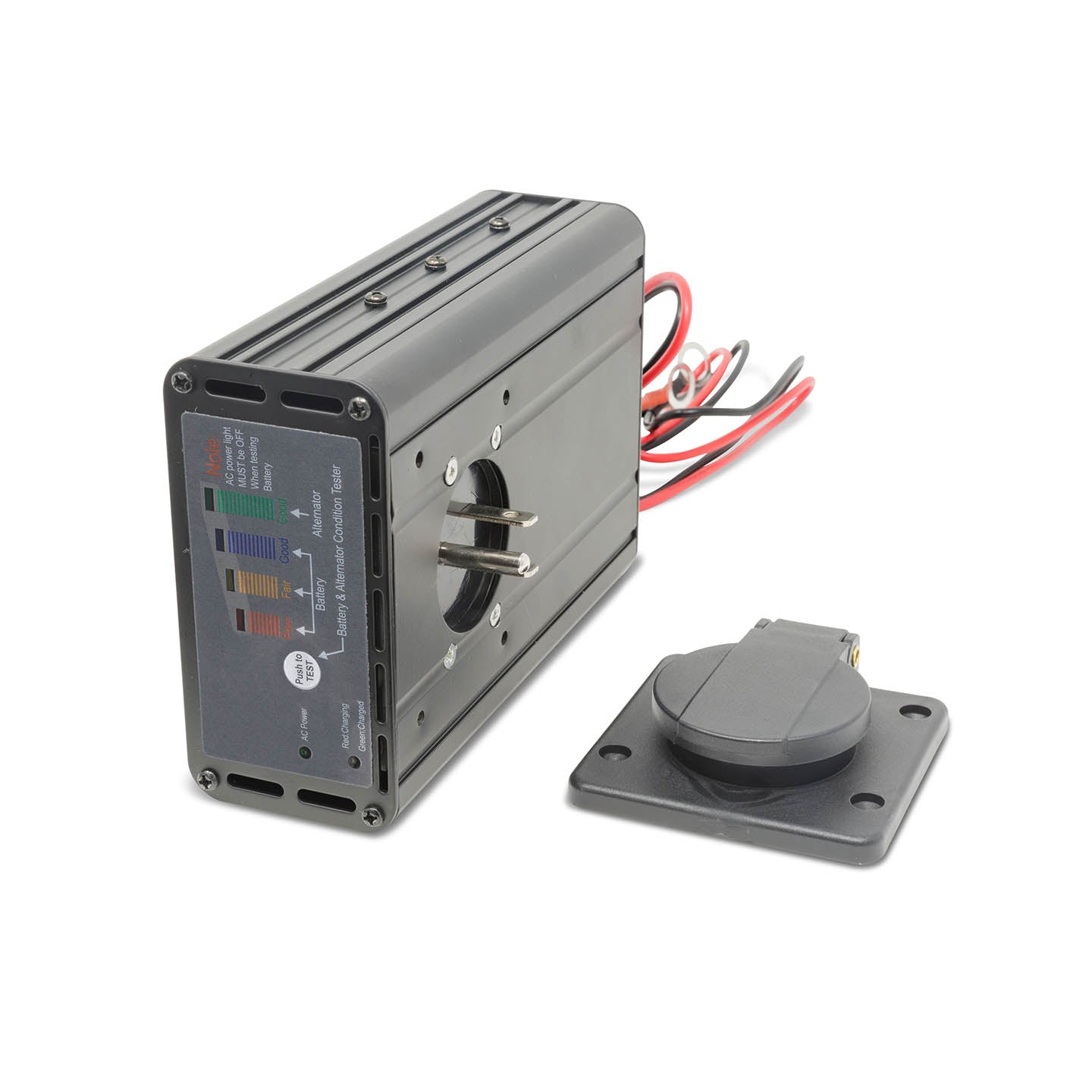

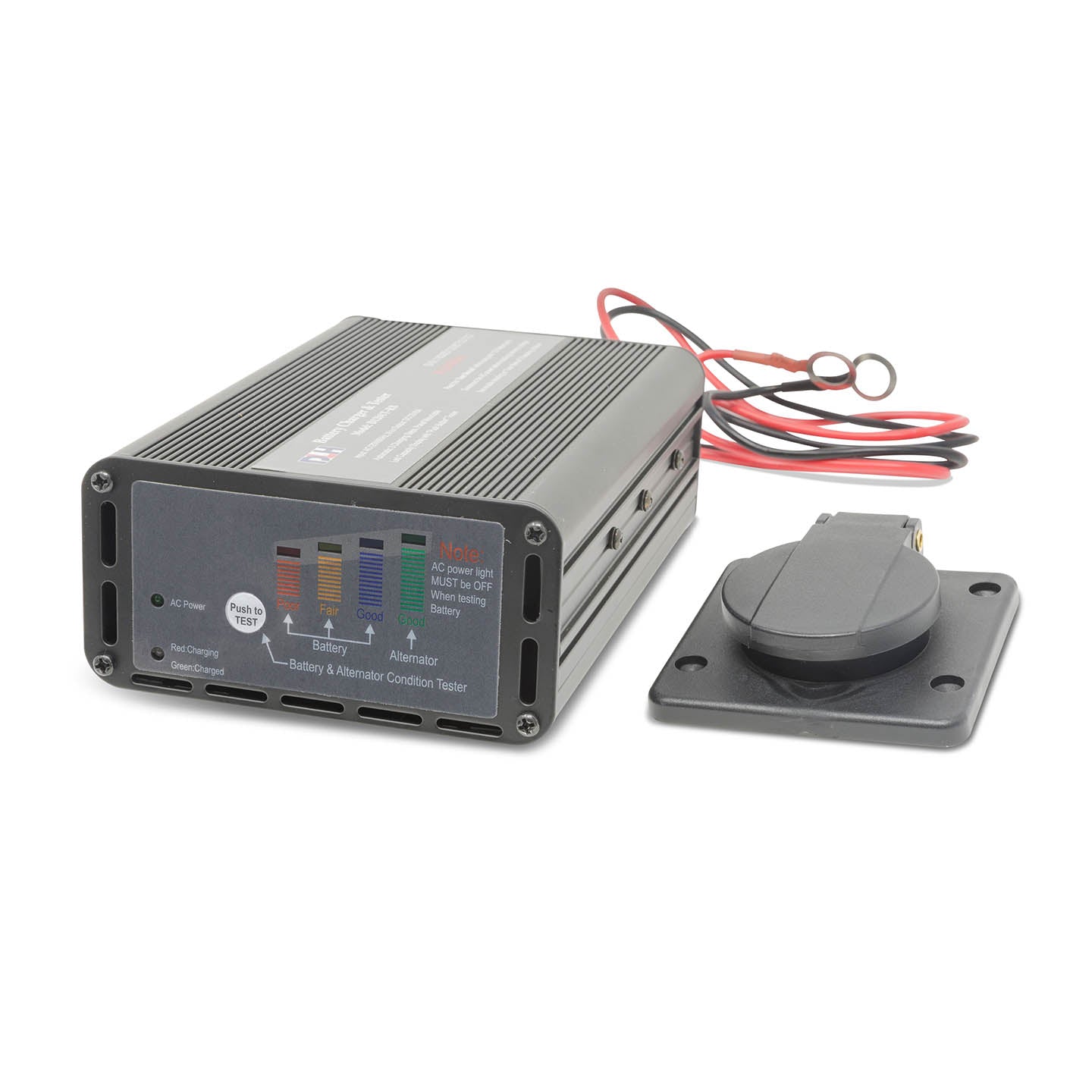

The 8 amp panel mountable battery charger is complete with a button-activated battery and alternator tester for 12V lead-acid batteries and features a 3-step charging process. *Images provided feature the previous 8amp model color. This item now comes in a sleek silver aluminum shell (previously dark grey). All product functions and specifications remain applicable to the new design.
3-step Charging Technology:
- Constant-Current Charge -- when the battery voltage is lower than set point, it will charge the battery at the max. current which is called quick charging.
- Constant-Voltage Charge -- when the battery is almost been fully charged, the charger will limit the current automatically.
- Float Charge -- when the battery voltage reaches the settled float voltage of 13.5V, it will automatically switch to the float charging condition with the current of 0.1A~0.3A.
- Input: AC 120V, 60Hz
- Output: DC 12V
- Charge Current: Max. 8 Amp
- Type of Battery Used: 12V Lead-Acid Battery
- Efficiency: > 90%
- Battery Cables: 24", 16 AWG
- Lead Wire: 3-Prong Plug
- Size: 175x015x60mm
- Weight: 1.0 kg
- Shell: Aluminum
- Color: Aluminum Silver (previously Dark Grey)
